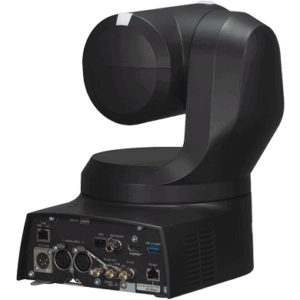

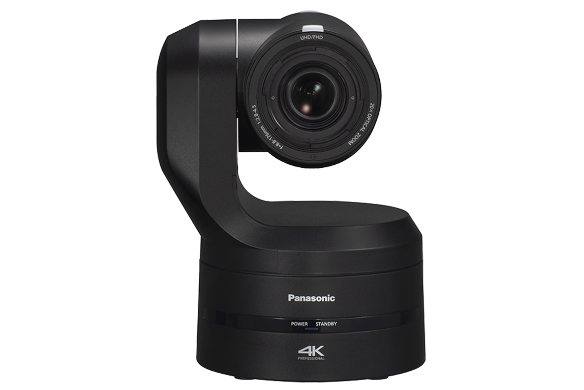

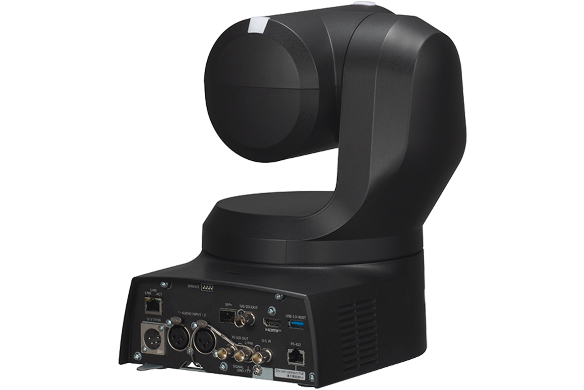

Camera PTZ 4K ST-2110 AW-UE160
- Cảm biến MOS 4K 1″ Loại 9.6MP
- Lên đến UHD 4K60 & 1080 Simultaneous Out
- Truyền dẫn 12G-SDI, HDMI, Fiber & IP
- Tùy chọn NDI & NDI|HX, ST 2110 tích hợp
- OLPF tích hợp, Tự động lấy nét được cải thiện
- Zoom quang học 20x, Chụp tốc độ cao 2x
- Chế độ HDR với Khả năng tương thích HLG/BT.2020
- Góc nhìn ngang rộng 75,1°
- Phát trực tiếp lên nền tảng thông qua RTMP
- 2 x XLR Audio In, Đèn kiểm đếm trước/sau
Linh hoạt, Nhạy bén PTZ 4K Camea
Ghi hình 4K tối ưu, ngay cả trong điều kiện ánh sáng khó khăn nhất với màu trắng Máy ảnh PTZ AW-UE160 UHD 4K 20x từ Panasonic. Camera PTZ chuyên nghiệp này xuất ra tới UHD 4K 60p qua nhiều kết nối 4K bao gồm 12G-SDI, HDMI, cáp quang và truyền phát IP. Nó có cảm biến MOS loại 1″ lớn, zoom quang 20x với góc nhìn rộng 75,1°, cơ chế PTZ được thiết kế lại mượt mà và khả năng tương thích PoE++. Các tính năng bổ sung của camera bao gồm khả năng tương thích HDR/HLG, đèn kiểm đếm phía trước và phía sau, bộ lọc 1/4, 1/16 và 1/64 ND cũng như phát trực tiếp qua RTMP.
Cảm biến MOS 4K 1″
AW-UE160 có cảm biến MOS 4K 1 mới được phát triển mang lại độ nhạy cao nhất trong toàn bộ dòng sản phẩm PTZ của Panasonic. Độ nhạy này cho phép bạn dễ dàng chụp được hình ảnh rõ ràng, ngay cả trong điều kiện ánh sáng khó khăn nhất, bao gồm các địa điểm tổ chức buổi hòa nhạc và nhà thờ.
OLPF tích hợp
- Một bộ lọc thông thấp quang học mới làm giảm hiệu ứng moiré, tạo ra chất lượng hình ảnh rõ ràng hơn.
- Đặc biệt hữu ích khi chụp vào tường LED, trong các sự kiện trực tiếp hoặc trong nhà thờ.
Tính linh hoạt của quy trình làm việc NDI và ST 2110
- NDI và NDI|HX tích hợp cung cấp khả năng truyền video linh hoạt qua mạng IP của bạn.
- Một tùy chọn ST 2110 với video chụp và quay lại tốc độ cao là lý tưởng cho chụp thể thao.
AF phát hiện pha
- Cải tiến công nghệ PDAF (phase-detection autofocus).
- Cho phép bạn tập trung vào các đối tượng di chuyển với tốc độ và độ chính xác cao.
Tốc độ cao Khung Rates
Chụp tốc độ cao 2x cho phép bạn tạo video chuyển động chậm mượt mà phù hợp với thể thao, Esports và các sự kiện năng động khác.
| General | ||
|---|---|---|
| Power Requirements | 12 V DC ± 10% (10.8 V to 13.2 V) | |
| PoE++ | IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) (Software authentication (LLDP) is supported). |
|
| Current Consumption | 5.0A (XLR IN connector), 1.5A (PoE++ power supply) | |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Ambient Operating Humidity | 20 % to 90 % (no condensation) | |
| Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) | |
| Mass | Approx. 4.6 kg (10.14 lbs) (excluding mount bracket) | |
| Dimensions (W x H x D) | 213 mm x 277 mm x 240 mm (8-3/8 inches x 10-29/32 inches x 9-7/16 inches) (excluding protrusions, ceiling mount bracket) |
|
| Finish | AW‑UE160W: Pearl white AW‑UE160K: Black |
|
| Controller Supported*1 | AW-RP150GJ*2, AW-RP60GJ*2, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ | |
| Camera Unit | ||
| Imaging Sensors | 1-type (1″) (Effective size) 4K MOSx1 | |
| Effective Pixels | Approx. 9,620,000 pixels | |
| Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches), 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
|
| Zoom | • Optical zoom: 20x • i.Zoom: UHD 24x, FHD 32x • D.Extender zoom: 1.4x, 2x |
|
| Conversion Lens | Not supported | |
| Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
|
| Optical Filter | Through, 1/4, 1/16, 1/64*3, (Through is used as “Night mode”) | |
| Focus | Switching between auto and manual | |
| Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
|
| Color Separation Optical System | 1MOS | |
| Standard Sensitivity | F14 / 2,000lx (Low Light), F11 / 2,000lx (Normal) (59.94Hz) F15 / 2,000lx (Low Light), F12 / 2,000lx (Normal) (50Hz) |
|
| Horizontal Resolution | 1,600 TV lines Type (Center area, in UHD Mode, at the Wide end) | |
| Gain Selection | Auto, -6 dB to 12 dB*4 | |
| Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*5 | |
| Electronic Shutter Speed | 60p | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| 59.94p/59.94i | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 50p/50i | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 29.97p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 25p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 23.98p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 59.94p/120 fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| 50p/100fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 | |
| Synchro Scan | 60p | 60.00 Hz to 7200 Hz |
| 59.94p/59.94i | 60.00 Hz to 7200 Hz | |
| 50p/50i | 50.00 Hz to 7200 Hz | |
| 29.97p | 30.00 Hz to 7200 Hz | |
| 25p | 25.00 Hz to 7200 Hz | |
| 23.98p | 24.00 Hz to 7200 Hz | |
| 59.94p/120 fps | 120.00 Hz to 7200 Hz | |
| 50p/100fps | 100.00 Hz to 7200 Hz | |
| Gamma | HD / NORMAL / CINEMA1 / CINEMA2*6 MASTER GAMMA (0.15～0.75) R GAMMA (-75～+75) B GAMMA (-75～+75) R BLACK GAMMA (-20～+20) B BLACK GAMMA (-20～+20) |
|
| White Balance | ATW*7 : 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
|
| Chroma Amount Variability | OFF, –100 % to 40 % | |
| Scene File | Scene1 to 8 | |
| Color Bar*8 | SMPTE, FULL ARIB (FHD): Output of base band type only ARIB (UHD): Output of base band type UHD only ARIB (2020/HLG): Output of base band type UHD only • IP display color bars do not conform with SMPTE |
|
| Output Format (UHD/FHD SDI) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/119.88p*9*10, 1080/100p*9*10, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (HDMI) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (Fiber (video only)) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p | |
| Output Format (ST2110 (uncompressed*11)) |
HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
| Output Format (SMPTE ST2110 JPEG XS (compressed)) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native) | |
| Synchronization System | ||
| Internal/External synchronization (BBS/Tri-level sync) | ||
| Input | ||

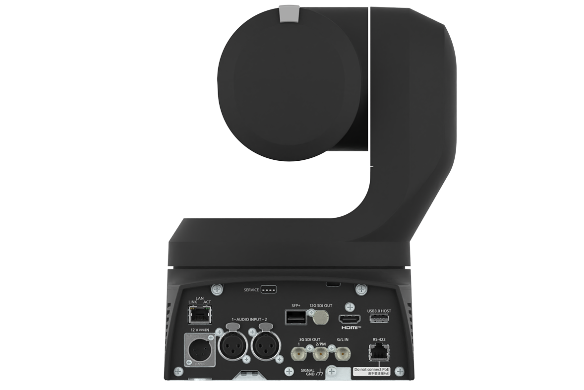

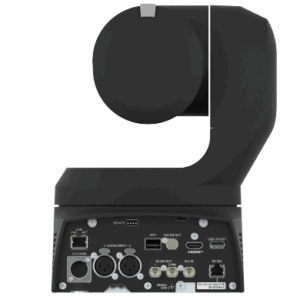

| Input Connector | DC IN | DC 12 V IN |
| G/L IN | BBS (Black Burst Sync), tri-level sync supported | |
| AUDIO INPUT 1/2 | XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP) AAC compatibility (compatible with IP only) XLR 3-pin female balanced input: 2ch |
|
| Output | ||
| Video Output | HDMI | HDMI 2.0 standard 4:2:2/10bit*12*13 |
| 12G-SDI OUT | SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14 | |
| 3G-SDI OUT1 | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14 | |
| 3G-SDI OUT2/PM | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1)*14 | |
| SFP+ | SFP+ compliant (Single Fiber)*15 Please use MSA (INF-8074) standard compatible product. | |
| USB | USB3.0 HOST 5G mobile router (with USB tethering support) | |
| Input/Output | ||
| Input/Output Connector | LAN | LAN connector for IP control (RJ‑45) 100BASE-TX/1000BASE-T |
| RS-422 | CONTROL IN RS-422A (RJ‑45) | |
| SFP+ (ST 2110*11) | Compatible protocol: • ST 2120-10/-20/-21/-22/-30 • PTP ST 2059-1/2 • NMOS IS-04/IS-05 Number of outputs: Number of inputs: Video x1 (RETURN) Video format: FHD*16 Please refer to the operating instruction manual. |
|
| Pan-tilt Head Unit | ||
| Pan-tilt Head Control | IP connecting cable | • With PoE++ ethernet hub LAN cable*17 (category 5e or above, straight cable) up to 100 m • Without PoE++ ethernet hub LAN cable*17 (category 5e or above, straight cable) up to 100 m*18 |
| AW protocol connecting cable | LAN cable*17 (category 5e or above, straight cable) up to 1000 m | |
| Installation Method | Stand-alone (Desktop) or suspended (Hanging)*19 | |
| Pan/tilt Operation Speed | Speed range | 0.08 °/s to 180°/s (Normal mode)*20 |
| Maximum speed | Normal mode: 60°/s Fast1 mode: 90°/s Fast2 mode: 180°/s |
|
| Panning Range | ±175° | |
| Tilting range | –30° to 210°*20 | |
| Quietness | NC35 or less*21 | |
| Supported Operating Systems and Web Browsers | ||
| Supported Operating Systems and Web Browsers | Windows | Windows®10 Microsoft Edge Google Chrome |
| Mac | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
|
| iPhone/iPad/ iPod touch | iOS Safari iPadOS |
|
| Android | Android OS Google Chrome |
|
| IP Streaming | ||
| Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI® High Bandwidth, NDI® HX2* | |
| Image Resolution | 3840×2160, 1920×1080, 1280×720, 640×360 | |
| Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps*22*23 Image quality (Fine / Normal) |
|
| Image Transmission Setting (H.264) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission mode | CBR, VBR | |
| Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
|
| Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps | |
| Image Transmission Setting (H.265) | Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| Transmission mode | CBR, VBR | |
| Frame Rate | [60Hz] 30fps / 60fps [50Hz] 25fps / 50fps |
|
| Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps | |
| Audio Compression Type | AAC-LC, 48 kHz / 16 bit / 2ch | |
| Supported Protocol | Network Protocol: | ICMP, ARP, GARP, MLD |
| Transmission Protocol | TCP/IP, UDP/IP | |
| Application Protocol | IPv6: HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X IPv4: HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X |
|
| Video Streaming Protocol | RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI® High Bandwidth, NDI® HX2 | |
| External Device Cooperation Protocol | FreeD, TSL5.0, SNMP | |
| NDI® Support | ||
| NDI® Support | NDI® High Bandwidth, NDI® HX2* | |
| Output Format (NDI® High Bandwidth) |
4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p |
| HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p*24 | |
| Image Resolution (NDI® HX2) |
3840×2160, 1920×1080, 1280×720*25 | |
| Image Streaming Setting | NDI® High Bandwidth | Transmission Type: TCP/UDP Unicast/Multicast Bit rate: Max 250 Mbps |
| NDI® HX2 | Transmission Type: TCP/UDP Unicast/Multicast Frame rate: Max Bit Rate: |
|
| Audio Compression Type | NDI® High Bandwidth | AAC, 48 kHz, 2 ch |
| NDI® HX2 | AAC-LC, 48 kHz,16 bit, 2 ch | |
| ST 2110*10 | ||
| Supported Format | ST 2110 | 10/20/21/30 |
| PTP | ST2059-2 | |
| NMOS | IS-04/IS-05 | |
| Number of Outputs (TX) | Video | 3 channels (Full x 1, MONI x 1, Crop x 1) |
| Audio | 2 channels | |
| Auxiliary data | No output | |
| Number of Inputs (RX) | Video | 1 channel (RETURN)*26 |
| Audio | No input | |
| Auxiliary data | No input | |
| Output Format (ST2110 (uncompressed)) |
Video format | MAIN x1, MONITOR x1, CROP x1, all the same format 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
| Audio specifications MIC1/2 | PCM / 48kHz / 24bit / 1ch x2 | |
| Output Format (SMPTE ST2110 JPEG XS (compressed)) |
Video format | MAIN x1 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native), 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native) |
| Video format | CROP x1 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native) |
|
| Audio specifications MIC1/2 | PCM/48 kHz/24 bit/1ch x 2 | |
| Input Format (ST2110 (uncompressed)) |
Video format | 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native) |
| Input Format (SMPTE ST2110 JPEG XS (compressed)) |
Video format | 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native) |
| New Features | ||
| HDR/SDR | HLG/BT.2020 compatible，SDR/BT.709 compatible | |
| Cropping | Select from 3 types of images from 3G/SDI OUTPUT2, Crop Zoom available | |
| F Number Display | Displayed on the AW-RP15GJ and AW-RP60GJ | |
| NDI® | NDI® High Bandwidth, NDI® HX2 included as standard*27 | |
| IP Menu Display | Supported*28 | |
| VR (FreeD) (IP/RS422) |
Supported | |
| Power LED | ON/OFF control | |
| Tripod Screw Penetration Measures | Yes | |
| Image Stabilization | OIS 2-axis + Hybrid method of roll direction correction MENU switching: select between OFF/O.I.S. (Stable)/O.I.S. (Pan/Tilt)/Hybrid (Stable)/Hybrid (Pan/Tilt) |
|
| Privacy Mode | The lens surface faces downward when standing by (ON/OFF) | |
| Yellow Tally | Supported | |
| PTP | Supported | |
| 5G Mobile Router (with USB tethering support) |
Compatible with recommended products only | |
| WFM Display | Output with video superimposed from 3G/SDI OUTPUT2 | |
| Focus Assist | Display focus display using PDAF (Phase Detection Auto Focus) | |
| Return Video Output | Output the return video input from ST 2110*11 to SDI OUT2
* All supported formats will be upgraded after the product is released. |
|
| Horizontal Level Gauge | ON/OFF control in OSD MENU or Web GUI | |
| Optional Accessories | ||
| Wireless Remote Controller | AW‑RM50AG (Size “AA” dry battery x2, obtained separately) | |
- *1:IP only.
- *2:Connection with digest authentication is not guaranteed to work in a case where you are using a Panasonic Controller ( AW-RP150, AW-RP60 ). Smooth operation may be diminished when connection with digest authentication. Use host authentication or the HTTPS function.
- *3:Equipped with Low pass filter.
- *4:Can be set in 1dB step increments.
- *5:If format is set in 1080/119.88p, 1080/100p, 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p,1080/25p, it cannot be set.
- *6:HLG is set in other menu.
- *7:ATW Speed 3-stage variables
- *8:The color bar on the IP display is not compliant with SMPTE.
- *9:1080/119.88p and 1080/100p use two 3G SDI OUT1/2 channels.
- *10:No output from 12G/SDI.
- *11:Requires activation with the separately sold Operational Software Key AW-SFU60.
- *12:HDCP is not supported.
- *13:Viera Link is not supported.
- *14:Compatible with Level-A/Level-B.
- *15:Optical signal input not supported.
- *16:Follows the system format.
- *17:STP (Shielded Twisted Pair) is recommended.
- *18:Use Category 6 or higher for 4K video transmission.
- *19:For safety reasons, it must be secured with the included mounting hardware.
- *20:Depending on the PAN/TILT position, the main unit may be reflected in the video image.
- *21:NC25 or less when P/T is stationary.
- *22:No bit rate specified.
- *23:JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate.
- *24:NDI® has no image resolution specifications.
- *25:NDI® HX2 has no output format specifications.
- *26:Output from 3G SDI OUT2 (Video is changed in the OSD menu)
- *27:Cannot operate simultaneously with AW protocol
- *28:Non-synchronous with SDI-OUT
- * NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
Hãy là người đầu tiên nhận xét “Camera PTZ 4K ST-2110 AW-UE160”
Sản phẩm tương tự
Thiết bị trường học thông minh
Camera
Camera
Camera
Camera
Đánh giá
Chưa có đánh giá nào.
